Standard Deviation, Box Plots, and 5 Number Summary
JQuiz Instructions
Show all questions
<=
=>
Find the range of the following:
32, 48, 63, 94,105, 129
?
-57
?
31
?
97
?
471
What is the standard deviation for the following?
9, 14, 23, 36
?
18
?
20.5
?
421
?
6.82
Find the 5 number summary
10,12,13,15,15,18,19,21,22,23,25
?
min=12, max=22, Q1=13, Q3=15, median= 18
?
max=25, min=10, Q1=13, Q3=22, median=18
?
median=10,max=25, Q1=15, Q3=22, median=18
?
max=21, min=13, Q1=13, Q3=22, median=15
Name the parts of the box plot.
?
A=max.,B= median,C=Q3,D=Q1, E=minimum
?
A=min., B=max, C=Q3, D=Q1, E=median
?
A=Q3, B=median, C=Q1, D= min. E=max.
?
A= min., B=max., C=median D=Q3, E=Q1
What is the Range of the following?
32, 56, 27, 19, 22, 20, 56
?
32
?
19
?
56
?
37
What is the standad deviation?
21, 8, 32, 4
?
122.1875
?
11.054
?
150.0625
?
16.25

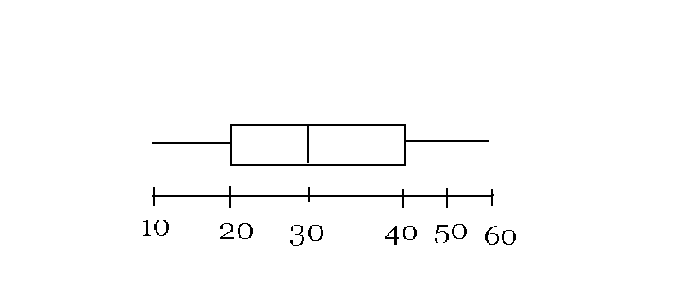

Find the 5 number summary using the box plot
?
Max=10, Q1=20 Q3=40, min=10 Median= 30
?
max=40 Q1=30, Q3=60 min=10 median=60
?
max=60 Q1=20 Q3=40 min=10 median=30
?
max=30 Q1=20 Q3=10 min=60 median=50
The following box plot is correct for the following data
Min.=5
Max=35
Q1=20
Q3=30
median=25
?
True
?
False
OK
<=
